4 Temp Channels
Humidity
Power & Smoke
SMS Alerts

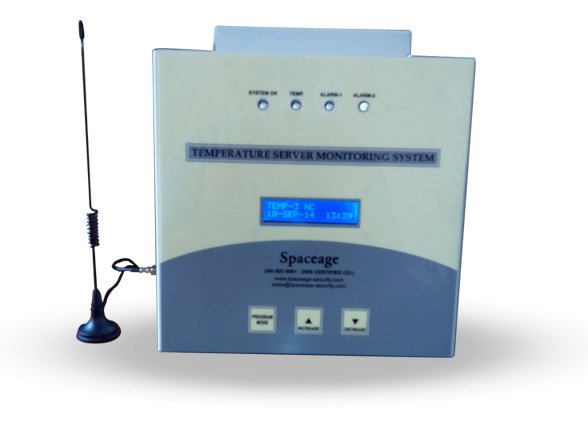

GSM Server Room & Data Center Environment Monitoring System
Real-time independent monitoring of Server Rooms and Data Centers. Monitors Temperature, Humidity, Power Status, Smoke, Flood, Motion and more with instant SMS alerts.
Salient Features
Key Features
Environmental Monitoring
- 04 independent channels for real-time temperature monitoring
- 01 dedicated channel for humidity monitoring
- User definable thresholds for each sensor
- LCD display with scroll option to view live data
Digital Inputs & Alerts
- 02 volt-free inputs for sensors (Raw Power, UPS Power, Smoke, Flood, Motion, Door Entry, etc.)
- Instant SMS alerts via built-in GSM modem
- Email alerts through GPRS / TCPIP (Optional)
- Audio alert via built-in buzzer + remote hooter output
System Capabilities
Advanced Features
Remote Access
- Send SMS to get current status of all sensors anytime
- Event and sensor log history stored in device
- View logs on LCD or download via RS-232 to PC
- Monitor from anywhere – office or outstation
Connectivity & Installation
- RS-232 port for PC/Laptop data download (software provided)
- Thresholds configurable from panel or software
- LED indications for quick status check
- Fully independent – No host PC or IT network required
Applications
Widely Used In
Server Rooms & Data Centers
Bank ATMs
Laboratories
HUB Rooms
Cold Storage & Warehouses
Poultry Farms
Hospitals
Technical Specifications
Specifications
Technical Details
| Power Supply | 220V AC, 50Hz |
| Temperature Channels | 4 Independent Channels |
| Humidity Channel | 1 Channel |
| Volt-Free Inputs | 2 Channels (for digital sensors) |
| Alert Mechanism | SMS via Built-in GSM Modem |
| Email Alert | Optional (via GPRS / TCP/IP) |
| Connectivity | RS-232 Port for PC/Laptop |
| Display | LCD Display with Scroll Function |
| Audio Alert | Built-in Buzzer + Remote Hooter Output |
| Operation | Fully Independent System (No PC required) |
Note: We reserve the right to revise features at any time, without any prior notice.
Monitor Your Critical Environment 24×7
Get instant SMS alerts the moment anything goes wrong in your server room or data center.
