4 Channels
RS485 Modbus RTU
20–70V DC
±1% Accuracy

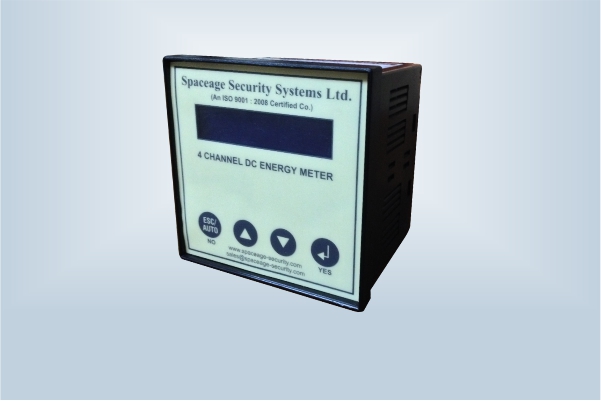

4 Channel DC Energy Meter
Precision DC energy monitoring for telecom and industrial sites. Measures current, voltage, and cumulative energy across 4 independent channels. Available with Shunt, Hall Effect, or Split Core sensor options.
Technical Details
Specifications
General Specifications
| Parameters Measured | Current, Voltage & Energy per channel (4 channels) |
| Accuracy | ±1% of range for Voltage, Current & Cumulative Energy |
| Voltage Range | 20V to 70V DC |
| Current Range | 0A to 99.9A DC per channel |
| Resolution | 2 decimals (Voltage & Energy); 1 decimal (Current) |
| Input Supply | 20–70V DC, polarity independent |
| Operating Principle | Microcontroller-based with Real Time Clock |
| Operating Temperature | 0°C to +55°C |
Physical & Mounting
| Size | 96mm (W) × 96mm (H) × 65mm (D) |
| Mounting | Wall mounted (fixture provided); optional rack mounting |
| Display | LCD with backlight — auto or manual scrolling |
| No. of Digits | 3 digits for Current and Voltage |
Communication
| Protocol | Modbus RTU Slave |
| Interface | 2-wire optically isolated RS-485 |
| Integration | SCADA, PLC, or Spaceage Remote Energy Monitoring Solution |
Sensor Options
- Shunt-based — direct in-line connection, cost-effective
- Hall Effect Sensor — non-contact, no circuit break needed
- Split Core Hall Effect — clamp-on, ideal for existing installations
- Complete Remote Energy Monitoring Solution also available
Applications
Where It's Used
BTS Power Monitoring
Monitor energy consumption across 4 DC feeder circuits in a BTS shelter for SLA compliance.
Battery Charge Tracking
Measure current flow in and out of battery banks to track charge cycles and health trends.
Data Centre PDUs
Sub-meter individual racks or UPS branches for energy auditing and capacity planning.
Energy Audit & SCADA
RS485 Modbus integration feeds live DC energy data into SCADA systems for trend analysis.
FAQ
Frequently Asked Questions
Three options: Shunt-based (direct in-line), Hall Effect Sensor (non-contact), and Split Core Hall Effect (clamp-on). The choice depends on your installation constraints and whether you can break the circuit for installation.
The device communicates via 2-wire optically isolated RS-485 using Modbus RTU slave protocol. It integrates with SCADA systems, PLCs, or Spaceage's Remote Energy Monitoring Solution for centralised energy tracking.
The meter achieves ±1% of range accuracy for voltage (20–70V DC), current (0–99.9A DC), and cumulative energy. Resolution is 2 decimal places for voltage and energy, and 1 decimal place for current.
Request a Quote for the 4 Channel DC Energy Meter
Available with Shunt, Hall Effect, or Split Core sensors. Complete Remote Energy Monitoring Solutions also available.
