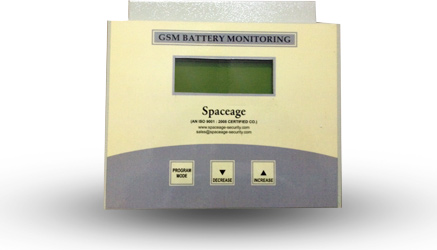

Battery Bank Voltage Monitoring & Alert System
Identify the specific failing battery in a 12 or 24-unit bank before it degrades your entire backup system. Continuous 24×7 voltage monitoring with SMS notification and NMS integration.
The Problem It Solves
One Faulty Battery Degrades Your Entire Bank
In a 12 or 24-battery bank, a single faulty cell silently reduces the performance of the entire string — shortening backup duration and preventing proper charging of all batteries. Without monitoring, replacement happens too late, after failure. This system identifies the specific failing battery so you can replace only what's needed.
Monitor Up to 24 Batteries
Online 24×7 voltage monitoring of each cell individually — no manual checks needed.
User-Defined Thresholds
Set individual low-voltage thresholds per battery to match your specific bank configuration.
SMS to 4 Recipients
Instant SMS listing all batteries below threshold — no repeated messages for same battery.
NMS NO/NC Output
Potential-free contacts integrate with any NMS for centralised monitoring at NOC/TOC.
Technical Details
Specifications
| Max Batteries Monitored | Up to 24 individual batteries |
| Monitoring Basis | 24×7 continuous voltage monitoring |
| Voltage Threshold | User-defined per individual battery |
| Operating Supply | 20V DC to 55V DC |
| SMS Recipients | Up to 4 user-defined mobile numbers |
| NMS Output | Potential-free NO/NC contact |
| SMS Behaviour | Single SMS listing all faulty batteries; no repeat for same fault |
| Display | Shows faulty battery number(s) on unit display |
- Identifies the specific battery needing replacement — no need to stress the whole bank
- Prevents premature replacement of healthy batteries
- Extends overall battery bank lifespan
- Works on both 24V and 48V DC telecom power systems
- SMS and NMS dual-alert mechanism
- Low operating cost — minimal power consumption
- Simple installation alongside existing battery banks
FAQ
Frequently Asked Questions
Protect Your Battery Investment
Contact us to discuss your battery bank configuration and get a tailored monitoring solution.
