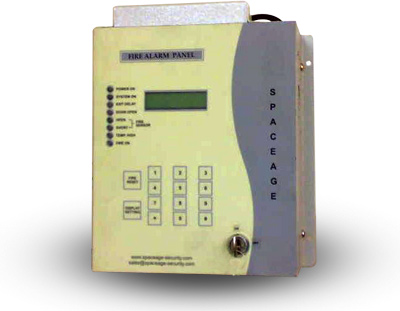

Advanced Fire Alarm Panel for BTS Shelters
An all-in-one monitoring and alert system integrating smoke detection, temperature alarm, and intrusion detection into a single compact unit — designed for unmanned telecom shelters operating on 48V DC.
Why You Need It
Protecting Unmanned BTS Shelters 24×7
Smoke / Fire
Optical smoke sensor detects fire inside the shelter early, triggering LED flash and distinct buzzer tone before damage occurs.
High Temperature
RTD/thermistor sensor continuously monitors shelter temperature. Alarm activates when AC failure or power cut causes dangerous heat rise.
Unauthorised Entry
Magnetic door sensor with configurable entry/exit delay and 4-digit passcode prevents and logs unauthorised access events.
Keeping the above in mind, Spaceage Security developed a comprehensive Advanced Fire Alarm Panel that integrates all monitoring and alert systems into one compact unit operating on 48V DC. Unchecked conditions can compromise costly equipment and cause service disruption — this panel ensures real-time alerts via NMS to your NOC/TOC.
Technical Details
Features & Specifications
| Fire Zones | One (optical smoke sensor; 2nd optional) |
| Door Sensor | Magnetic, 1 No. |
| Temperature Sensor | RTD / Thermistor, 1 No. |
| Operating Supply | −48V DC (range −40V to −60V DC) |
| Display | LCD with zone-based indicators |
| Entry Code | 4-digit passcode (factory preset 1234, user-changeable) |
| Mounting | Vertical wall mount |
| Panel Finish | Off-white with polycarbonate sticker |
| Configuration | Dedicated configuration switch + jumper-based mode settings |
| Temperature Cut-off | Configurable via jumper; auto-resets when temp normalises |
| Exit Delay | Jumper-based configuration for authorised exit time |
| Hooter Time | Adjustable hooter time limit |
| Fire Reset | Front panel reset switch for manual acknowledgement |
- Intrusion, smoke & temperature detection in one unit
- LCD display with zone-based indicators
- Audible buzzer with NMS NO/NC relay output
- 4-digit passcode, changeable without opening panel
- Auto-reset after temperature normalises
- Industrial-grade rugged design for harsh environments
- Features customisable on request
Applications
Where It's Deployed
Unmanned BTS Shelters
Primary application — round-the-clock fire, temp, and intrusion monitoring in remote telecom tower sites.
Telecom Exchange Rooms
Protects expensive telecom switching and transmission equipment from fire and thermal events.
Edge Data Centre Cabinets
Compact edge sites benefit from integrated multi-alarm protection without dedicated security staff.
Power Equipment Rooms
Monitors battery rooms and rectifier rooms where overheating or electrical faults pose high risk.
FAQ
Frequently Asked Questions
Request a Quote for the Advanced Fire Alarm Panel
Customisations available on request. Speak to our team about your specific shelter configuration.
