ICAO Annex 14
Solar Powered
Autonomous Operation
Flashing Red

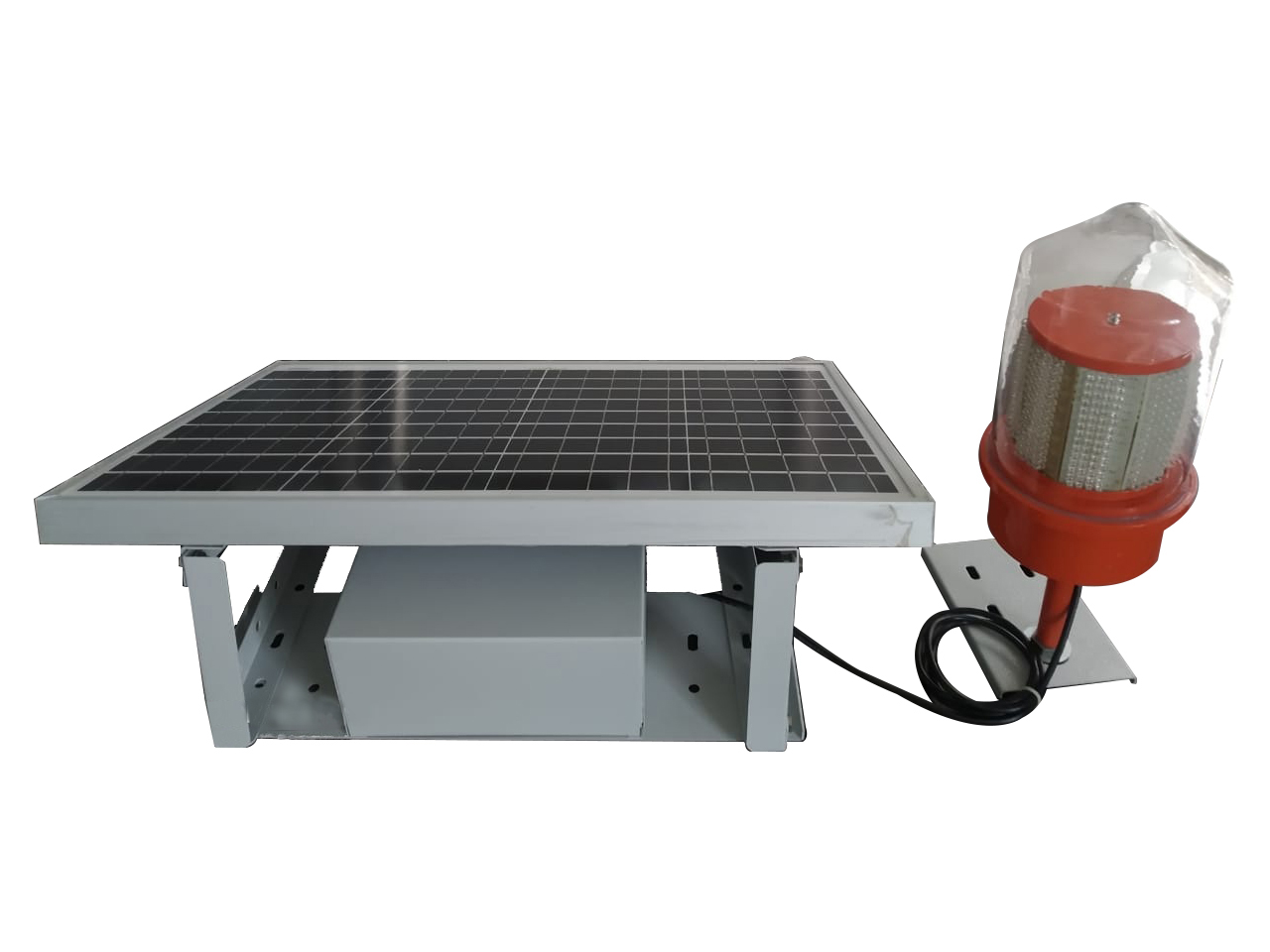

Medium Intensity Type B Solar Aviation Light
Fully self-contained solar powered aviation obstruction light meeting ICAO Medium Intensity Type B requirements. Delivers >2000 cd red flashing light with reliable automatic dusk-to-dawn operation. Ideal for tall structures where grid power is unavailable.
Model Selection
Available Configurations
Solar Medium Intensity Type B
| Model | AV-20-SMB |
| Operation | Flashing (20–40 FPM) |
| Light Intensity | >2000 cd (ICAO Medium Intensity Type B) |
| Color | Red |
Technical Details
Specifications
Light Unit
- Medium Intensity Type B — >2000 cd as per ICAO Annex 14
- High Power Red LEDs with precision optics
- Multiple parallel LED circuits for redundancy
- 360° uniform light distribution
- Flash rate 20–40 flashes per minute
- Clear glass shell with bird spike
- Inbuilt LDR for automatic dusk-to-dawn operation
- Cast aluminum base with bright orange powder coating
- IP65 weatherproof protection
Solar Power System
- High-capacity 12V Sealed Maintenance Free Battery
- Large high-efficiency Solar Module
- Advanced MPPT charge controller
- Overcharge & Deep Discharge Protection
- LED life >50,000 hours
- Operating temperature: -10°C to 55°C
- Rugged design for harsh environments
- Easy installation on towers and structures
Note: Due to continuous improvements, Spaceage reserves the right to modify the specifications without prior notice.
FAQ
Frequently Asked Questions
Medium Intensity Type B provides significantly higher light intensity (>2000 cd) with flashing operation, making it suitable for taller structures (typically 45m to 150m). Low Intensity Type A/B are steady burning and meant for shorter obstacles.
No. It is completely autonomous. The large solar panel charges the battery during daylight hours, and the light operates automatically from dusk to dawn using the built-in LDR sensor.
The light flashes red at a rate of 20 to 40 flashes per minute as per ICAO requirements for Medium Intensity Type B obstruction lighting.
Powerful Solar Aviation Lighting for Tall Structures
Reliable >2000 cd flashing red light with zero wiring. Perfect for towers, chimneys, high-rise buildings and remote locations.
