ICAO Annex 14
Solar Powered
Autonomous Operation
Single & Dual Dome

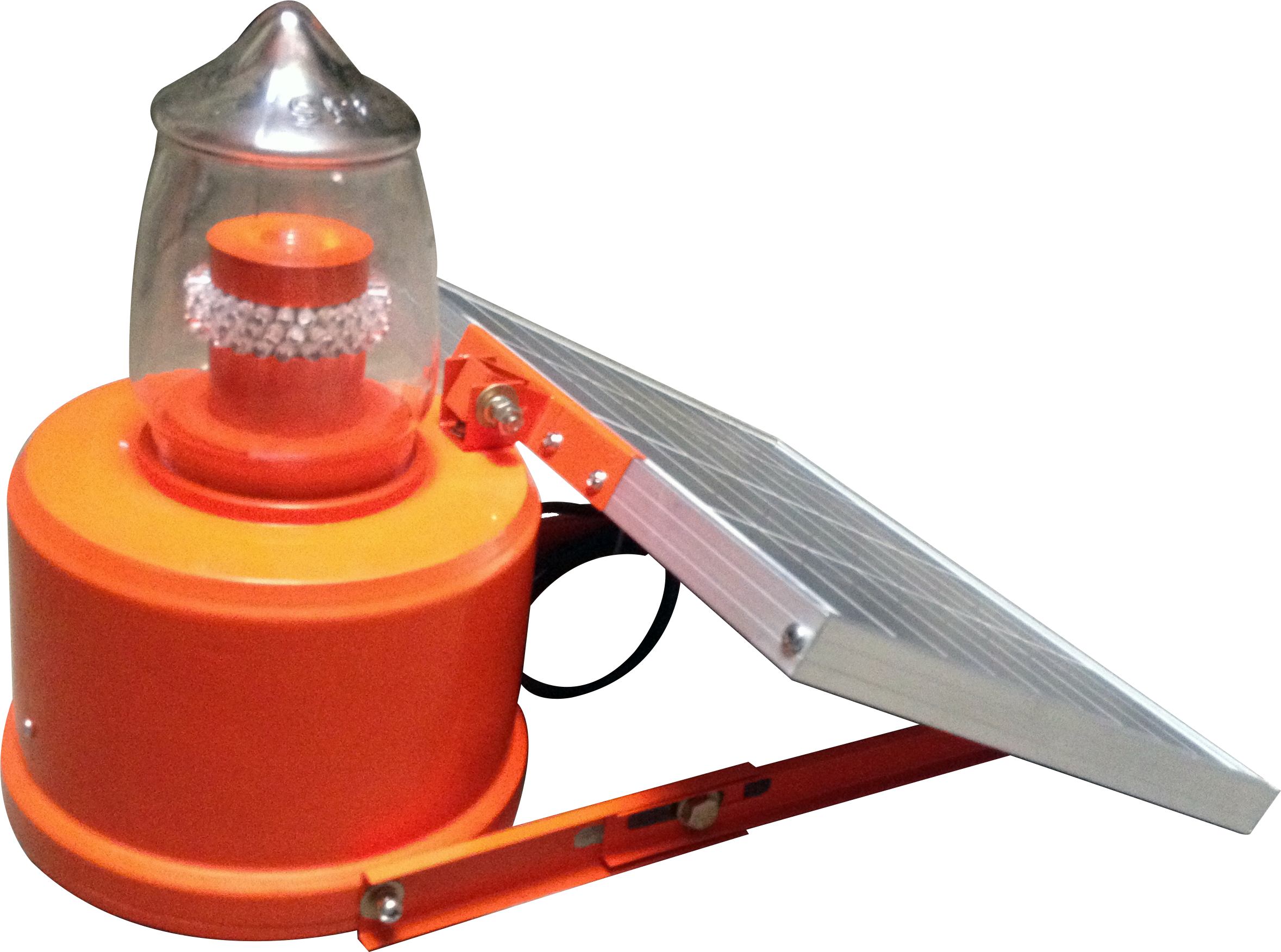

Low Intensity Type A Solar Aviation Light
Fully self-contained solar powered aviation obstruction light meeting ICAO Low Intensity Type A requirements. Available in single and dual dome configurations with uniform 360° red light distribution for reliable dusk-to-dawn operation on smaller structures.
Model Selection
Available Configurations
Single Dome Solar Type A
| Model | AV-04-SA (Single Dome) |
| Operation | Steady Burning (Fixed) |
| Light Intensity | >10 cd (ICAO Low Intensity Type A) |
Dual Dome Solar Type A
| Model | AV-04-DSA (Dual Dome) |
| Operation | Steady Burning (Fixed) |
| Light Intensity | >10 cd per dome (ICAO Low Intensity Type A) |
Technical Details
Specifications
Light Unit
- Low Intensity Type A — >10 cd as per ICAO
- Red High Power LEDs with inbuilt lens for maximum efficiency
- Multiple parallel LED circuits for redundancy
- Cylindrical PCB mounting for uniform 360° intensity
- Clear glass shell (no degrading plastic)
- Bird spike included
- Inbuilt LDR for automatic dusk-to-dawn operation
- Low power consumption
- Cast aluminum base with bright orange powder coating
- Silicon-based permanent sealant — IP65 protection
Solar Power System
- 12V Sealed Maintenance Free Battery
- High-efficiency Solar Module
- Overcharge & Deep Discharge Protection
- LED life >50,000 hours
- Natural draft ventilation
- Operating temperature: 0 – 55°C
- Easy mounting on angular or tubular towers (no welding/drilling required)
Note: Due to continuous improvements, Spaceage reserves the right to modify the specifications without prior notice.
FAQ
Frequently Asked Questions
The light is completely autonomous. The built-in solar panel charges the battery during the day. An inbuilt LDR (photo sensor) automatically turns the light ON at dusk and OFF at dawn. No external power supply or cabling is required.
Unlike conventional flat PCB designs that create bright streaks and dark zones, Spaceage mounts LEDs on a cylindrical surface. This delivers truly uniform 360° light intensity at every horizontal angle, fully meeting ICAO requirements without secondary lenses.
Type A has a minimum intensity of >10 cd and is suitable for smaller or lower-risk obstacles. Type B provides higher intensity (>32 cd) and is typically used for slightly taller structures or where greater visibility is needed.
Completely Autonomous Aviation Lighting
Perfect for low-height obstacles and remote sites. Solar powered Type A light with zero wiring and reliable automatic operation.
